Enduro E-Bike frame only Kit

• here you can select the size frame color and decal color after confirming your order we need around 3 weeks to complete the painting, assembly, and shipping of your order. For custom colors,  an upcharge of USD400 applies. We can set up a video call to discuss your dream bike and to get to know each other! If you want to use DVO Suspension you can add those to your cart from our shop!
•

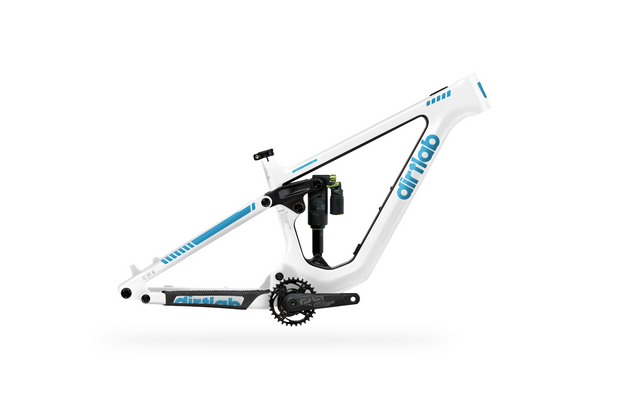

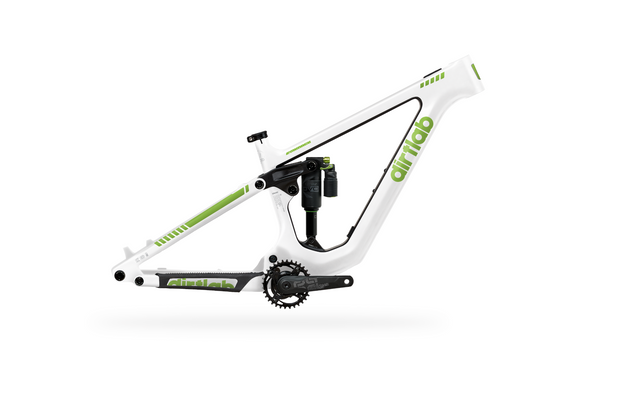

• The Dirtlab E-Menace Frame: A revolutionary e-bike frame kit that includes:

  • Maxon Bikedrive AIR drive system
  • E13 crankset with a 32T chainring
  • 104BCD 4-arm spider

• Collaboration with Maxon: From 2020 to 2022, we’ve worked hand-in-hand with Maxon to integrate and fine-tune the frame and engine system, ensuring a top-notch e-bike that rides like a dream.

• Engine Excellence:

  • Inspired by NASA’s Mars rover and copter engines
  • Compact and robust with a maximum power output of 30Nm
  • Three customizable ride modes which are customizable via a Bluetooth app

• Lightweight Design:

  • Engine system: Only 3.5Kg
  • Frame: Approximately 2400grs, color-dependent
  • Complete bike weight: Between 14.5 (DC/TRAIL)-18Kg (full enduro coil), based on components and use category.

• Customization Options:

  • Multiple rear suspension travel options: 150mm(TRUNNION 205-65) is the standard but modifying the shock stroke between 65 and 55 gives a range in 5mm increments from 130-150mm rear travel
  • Compatible with 150-170mm front forks (150R) or 140-150mm forks (130R)
  • Framekit includes: Frame, Headset, Engine system, Crankset, Spider, and Chainring
  • Additional DVO forks and rear shocks available for ordering

• E-Menace vs. Menace: The E-Menace maintains the beloved ride feel of the Menace platform, with slight modifications for e-bike suitability.

• Powerful Battery System:

  • Maximum engine output: 40Nm and 280w power
  • In-tube battery: 1.2Kg, 250Wh, rechargeable in 3 hours
  • Optional 250Wh range extender for longer adventures

• Ride Dynamics:

  • Engine tuned for MTB-specific cadence at an average of 65RPM
  • Battery efficiency allows for 2-5 hour rides
  • Eco-Trail and Boost modes with a magnetic shifter for easy control
  • the closest you remain to real biking with 2 x your strength available.

• Pre-Order Process: We operate on a pre-order basis to ensure quality and value, with a 3-week lead time for painting and assembly.

• Color Customization: Choose any Pantone color for a fully personalized bike, with a maximum lead time of 5 weeks for stocked frames.

• Need More Info? If you have questions or want to chat, just drop us an email at sales@bikelab-inc.com

We hope this breakdown makes everything about the Dirtlab E-Menace frame clearer and has sparked you to get one, If you have any more questions or need further assistance, feel free to ask, we do one to one video meetings as an extra service free of charge and can assist you to buy the right E-bike. 😊

GEOMETRY

Maxon Modeshifter by Zirbel

Maxon HMI display w. integrated processor

Maxon Bikedrive air engine 1.85KG 40NM 280W.

Maxon 250WH intube Battery 1.2kgs
